Integration with Google Tag Manager

Tidio's integration with Google Tag Manager allows you to send events from the Tidio widget to dataLayer, and then from dataLayer through GTM to other services.



In this article, you'll learn:

• How to integrate Tidio with Google Tag Manager
• How to set up the Tidio widget event listener
• How to create variables from Tidio events parameters
• What Tidio widget events are sent to Google Tag Manager



How to integrate Tidio with Google Tag Manager

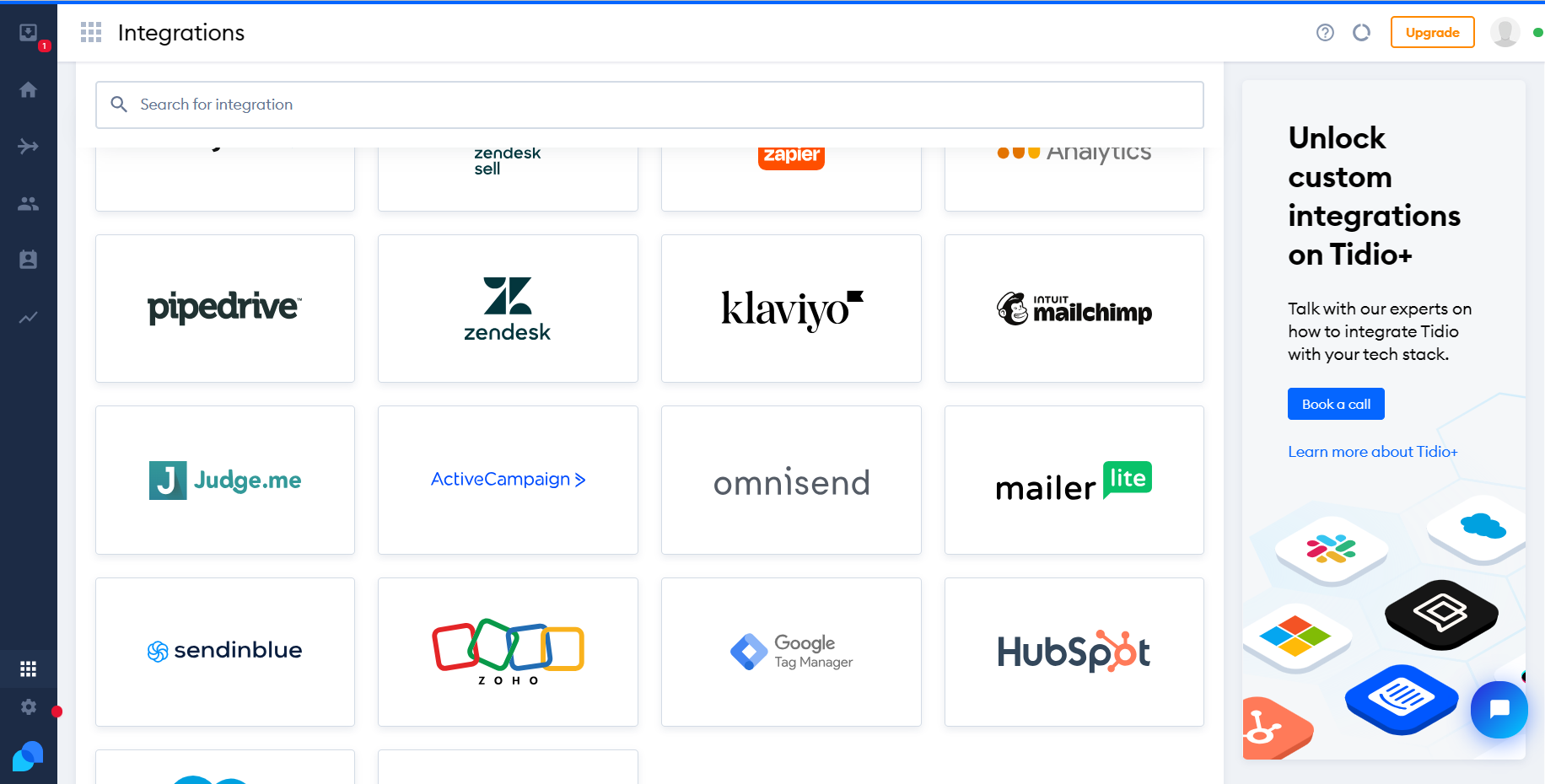

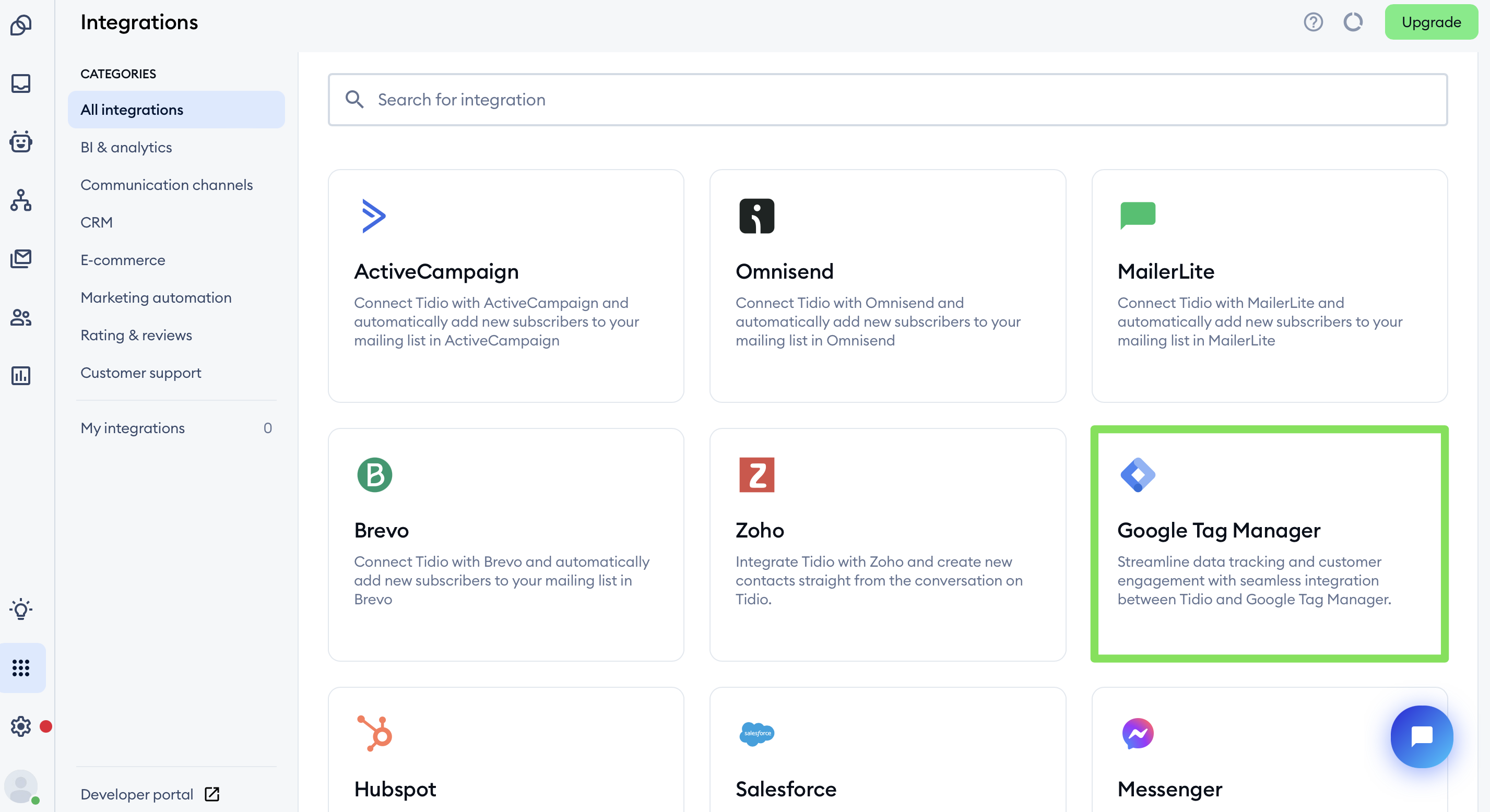

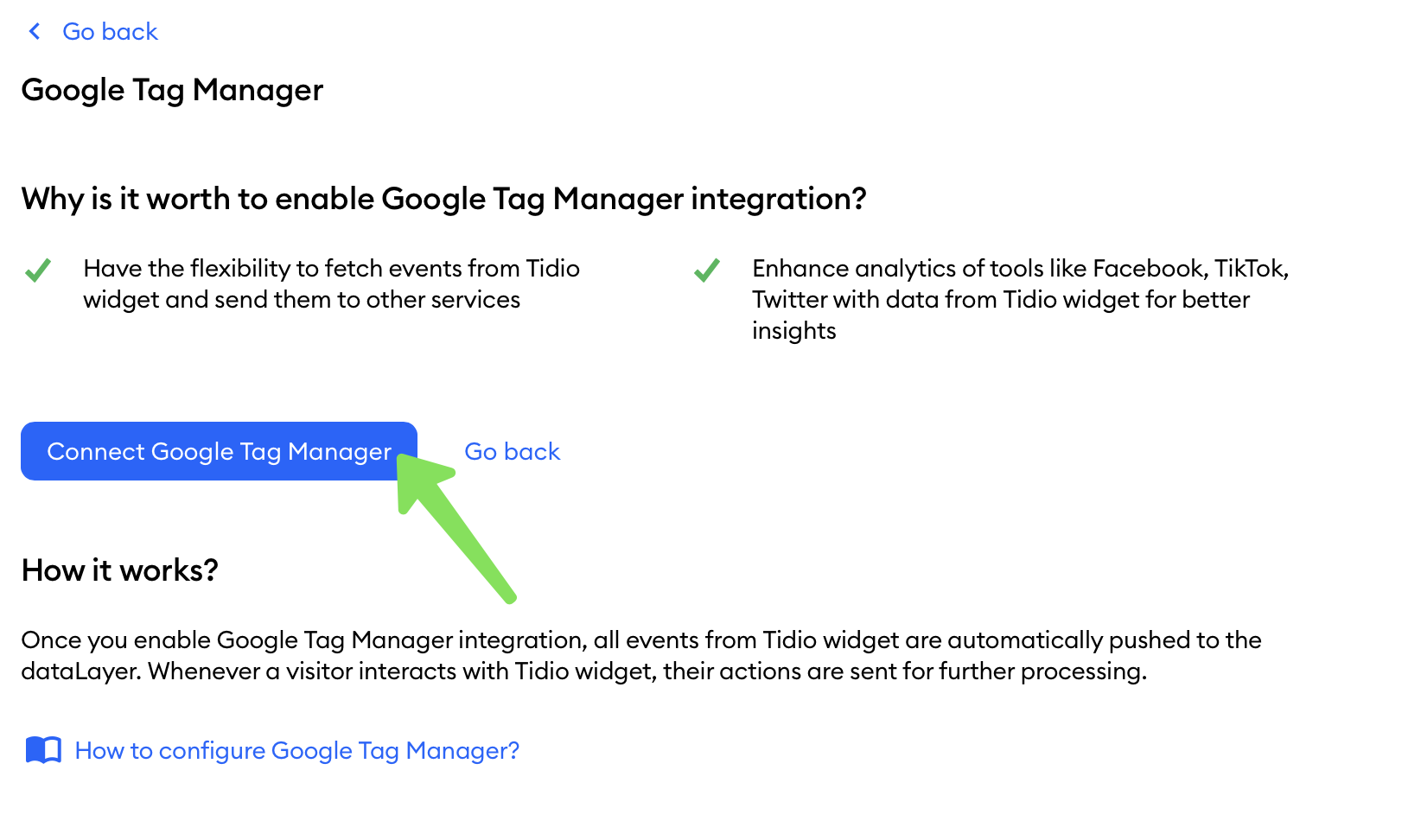

To enable integration with GTM, go to the list of integrations in your Tidio admin panel, click on the Google Tag Manager tile, and press Connect Google Tag Manager.



From now on, events from the Tidio widget will be sent to your dataLayer. Now you'll need to set up GTM in order to see Tidio widget events in the GTM.



Setting up Tidio widget event listener



Tidio events use a specific naming convention. Events names follow the structure:



tidio_{{event_category}}_{{event_action}}, where:

tidio_ - is a suffix that indicates the origin of the event. It will be also a suffix for custom events sent from chatbots.

{{event_category}} - indicates a category. we have identified three categories:

• widget - groups actions that users can perform in a widget
• prechat - refers to actions done with regard to the pre-chat survey
• conversation - refers to actions done with regard to a conversation. These events can be also triggered by an operator or a chatbot, not necessarily a visitor.

{{event_action}} - refers to users/visitors, operators, automation action, e.g., started so there will be an event with the name `tidio_prechat_started`. Below you’ll find a cheatsheet with all events, parameters, and dataLayer.push calls of Tidio widget events.



To catch all those events in Google Tag Manager, you'll need to set up a Trigger.

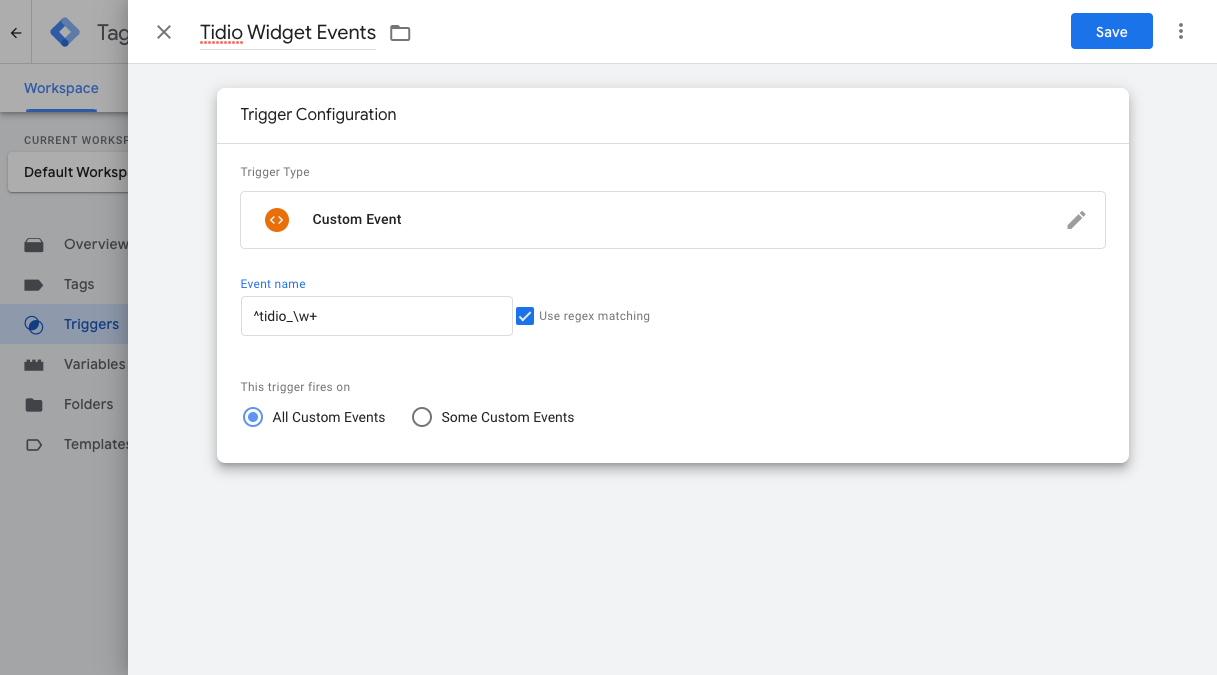

To set up a trigger:

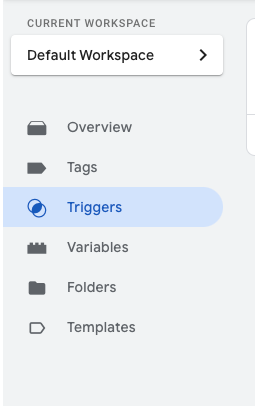

1. log in to your Google Tag Manager account and go to the Triggers section.





2. Press New

3. As a name, you can set Tidio Widget Events

4. In the trigger type select Custom event

5. In event name paste ^tidio_\w+ and select Use regex matching. This will allow you to trigger on all events that begin with tidio_ , so you don’t have to set up a trigger for every single event.





6. Press Save

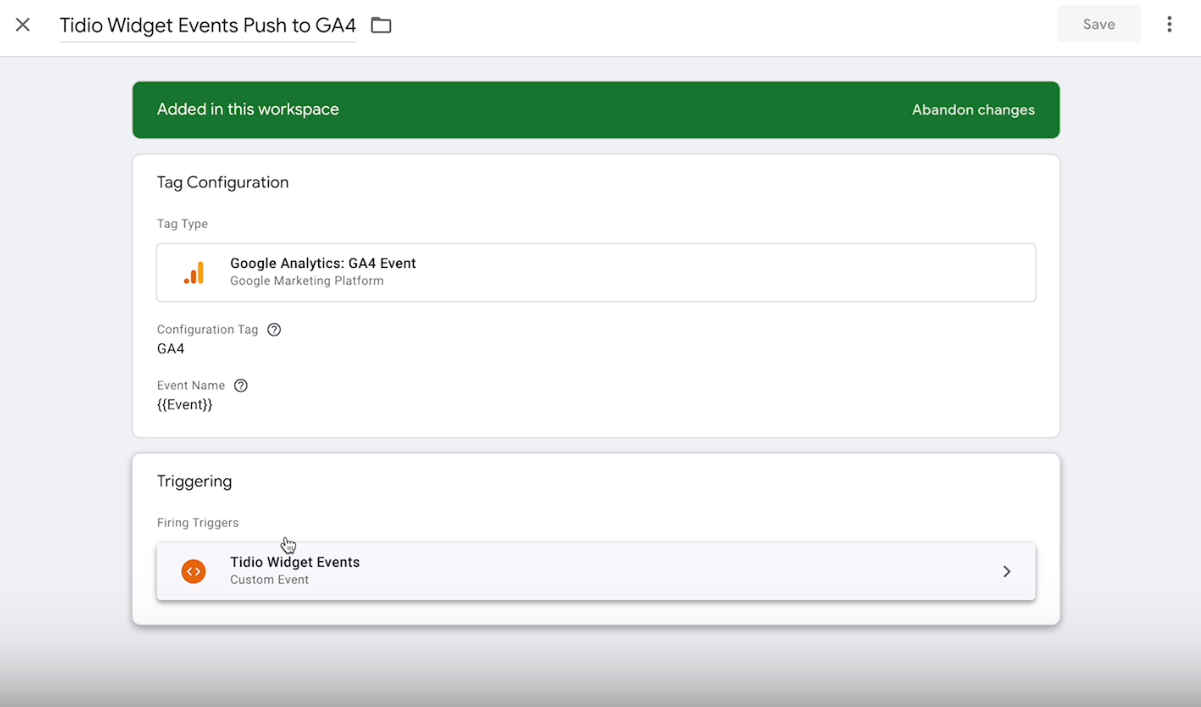

Once the trigger is saved, in the Tag Configuration, you need to set the following tag:



Now, whenever an event happens that starts with tidio_, you will catch that through Google Tag Manager.





Creating variables from Tidio events parameters



We send not only events but also parameters inside them. You can pick them up with GTM and save them as variables that can be used in Tags or Triggers.

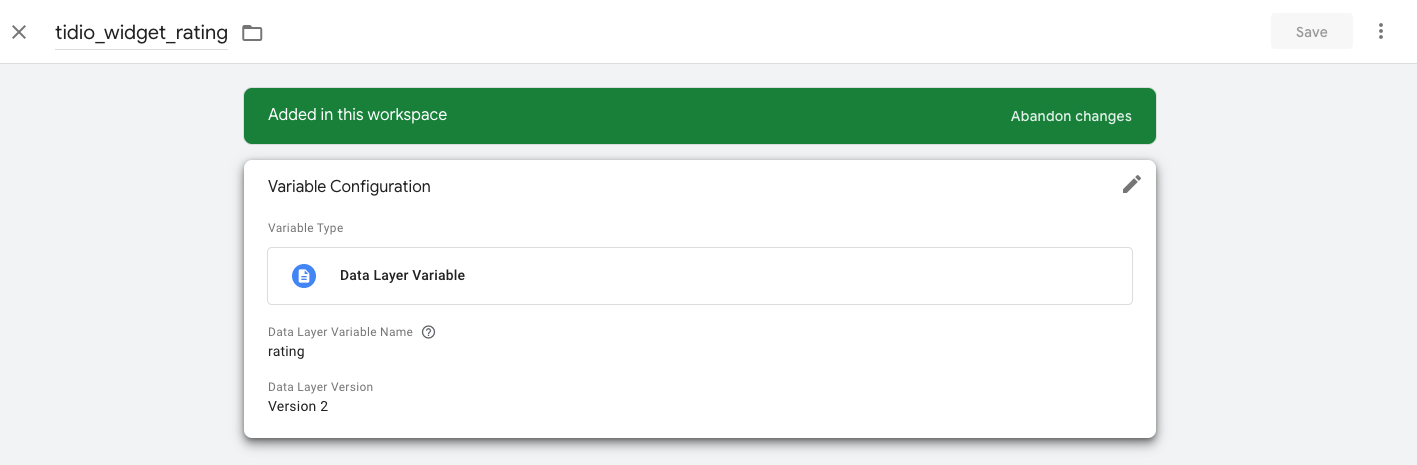

To create a Variable:



1. Log in to Google Tag Manager

2. Go to Variables





3. Press New in User-Defined Variables

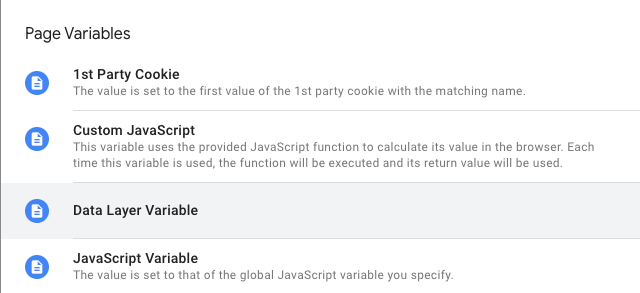

4. Select Data Layer Variable for variable type





5. Paste the name of the variable from the list of Tidio Widget Events variables.





6. Repeat that for every parameter that is sent with Tidio Widget Events.



Now you can use both Tidio events and parameters as triggers and variables for tags from GTM.



Tidio Widget Events sent to Google Tag Manager



We use dataLayer.push method to send events from the Tidio widget to GTM. Below you’ll find information on what events, what parameters, and when they are sent.



Tidio Widget GA4 Events

Name	Event theme	GA4 Event parameters	Description	GTM example API call
tidio_widget_mute_notifications	Widget	visitor_id	A visitor mutes notifications.	dataLayer.push({ event: "tidio_widget_mute_notifications", visitor_id: "a0488de5553843668d061d961468f224" })
tidio_widget_open	Widget	visitor_id	A visitor opens Tidio widget.	dataLayer.push({ event: "tidio_widget_open", visitor_id: "a0488de5553843668d061d961468f224" })
tidio_widget_close	Widget	visitor_id	A visitor closes Tidio widget.	dataLayer.push({ event: "tidio_widget_close", visitor_id: "a0488de5553843668d061d961468f224"})
tidio_widget_visitor_started_bot	Widget	visitor_id	A visitor started a bot intentionally.	dataLayer.push({ event: "tidio_widget_visitor_started_bot", visitor_id: "b42c892b2804493d882b550511806aee" })
tidio_prechat_started	Pre-Chat	email, phone, name, visitor_id, consent_given	Pre-chat survey is displayed to a visitor.	dataLayer.push({ event: "tidio_prechat_started", email: true, phone: true, name: true, consent_given: true, gtm.uniqueEventId: 10 })
tidio_prechat_finished	Pre-Chat	email, phone, name, consent_given	A visitor has submitted pre-chat survey.	dataLayer.push({ event: "tidio_prechat_finished", email: true, phone: true, name: true, consent_given: true, gtm.uniqueEventId: 9 })
tidio_conversation_{{custom_event}}	Conversation		A custom event sent by the chatbots, after execution of “Custom event node”	dataLayer.push({event: "tidio_conversation_custom_event" })
tidio_conversation_started	Conversation	source, operator_status, chatbot_name, message_type, visitor_id	The first message in the thread is sent by the visitor, operator or chatbot.	dataLayer.push({ event: "tidio_conversation_started", visitor_id: "a0488de5553843668d061d961468f224", source: "chatbot", chatbot_name: "Welcome new visitors", message_type: "text", operator_status: "online" })
tidio_conversation_rated	Conversation	rating, visitor_id, thread_id	A visitor has rated a conversation using emojis.	dataLayer.push({ event: "tidio_conversation_rated", thread_id: 15550, visitor_id: "a0488de5553843668d061d961468f224", rating: 5 })
